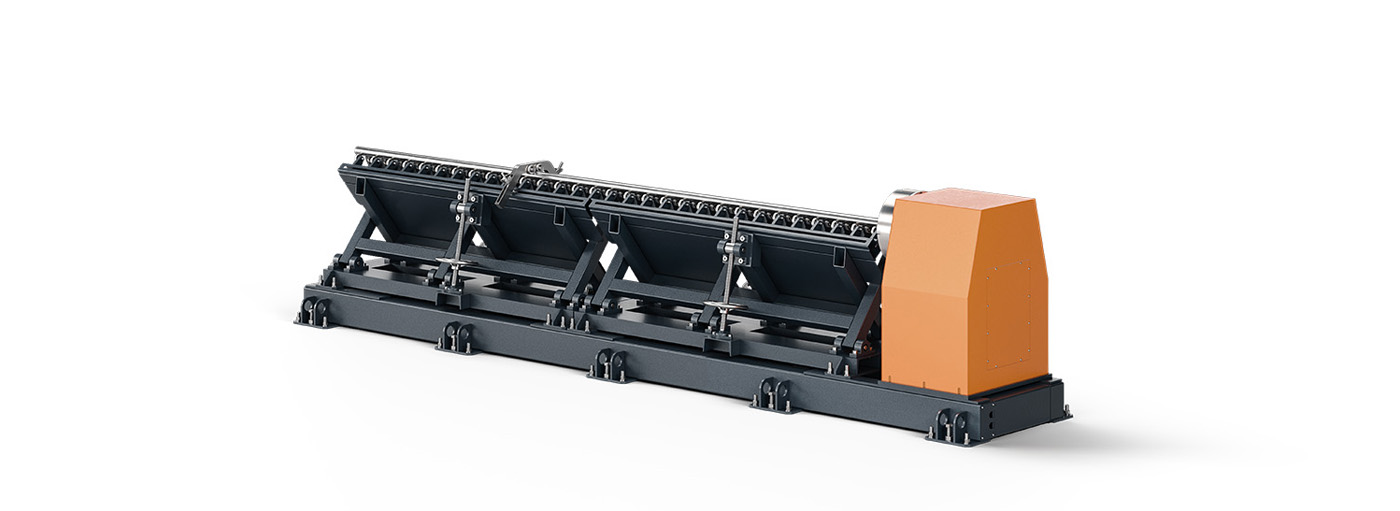

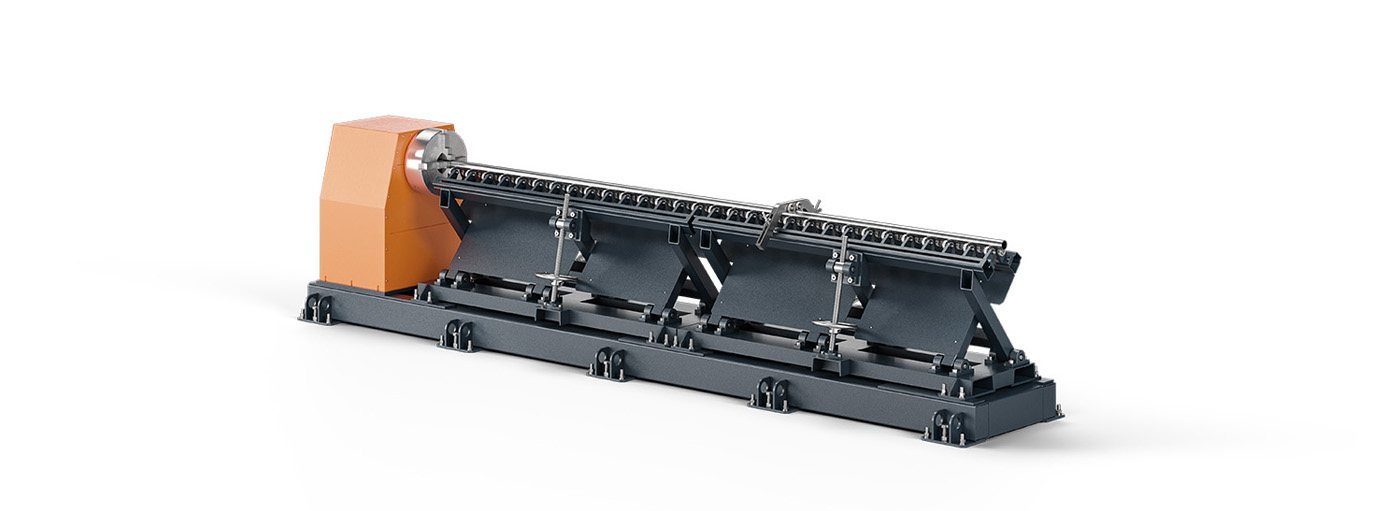

Module for round tube cutting TCU-Standard is combined with laser cutting machines LC Standart, LC Master, LC Professional M2 and allows for cutting tubes along the length, engraving, as well as cutting out holes of any complexity and grooves.
Unimach machinery is produced in St Petersburg using our own components.
TCU-Standard Features
Cost-effective functional solution
Reliable construction
All-length roller bed
Powerful engine
Drive of clamping chuck – zero backlash planetary gear-motor
Features of Unimach tube cutting modules
High performance

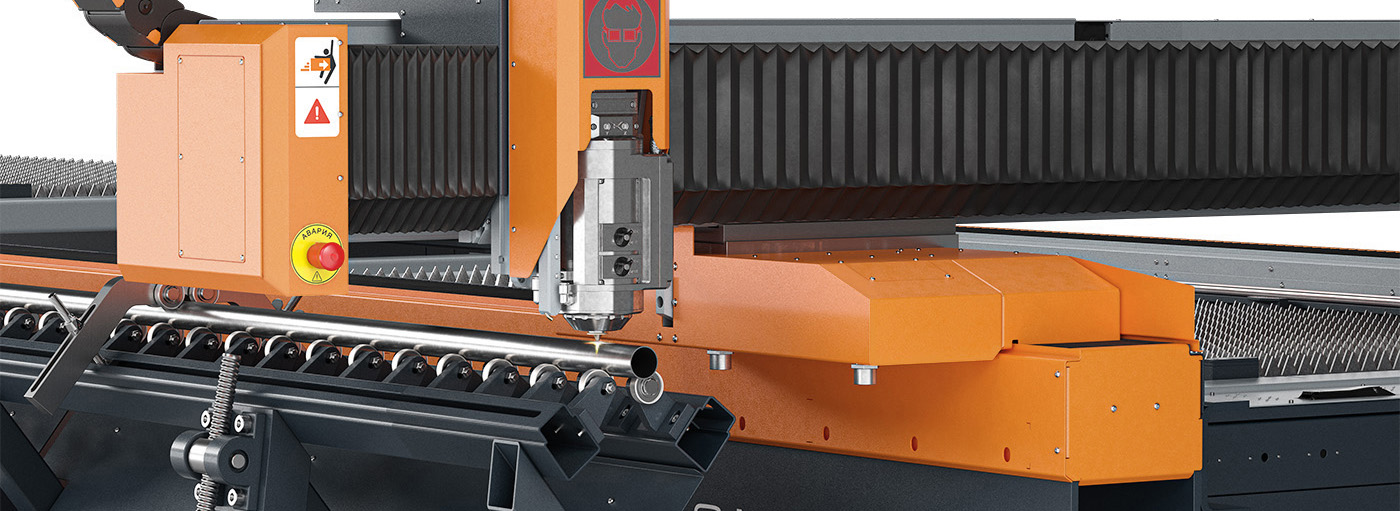

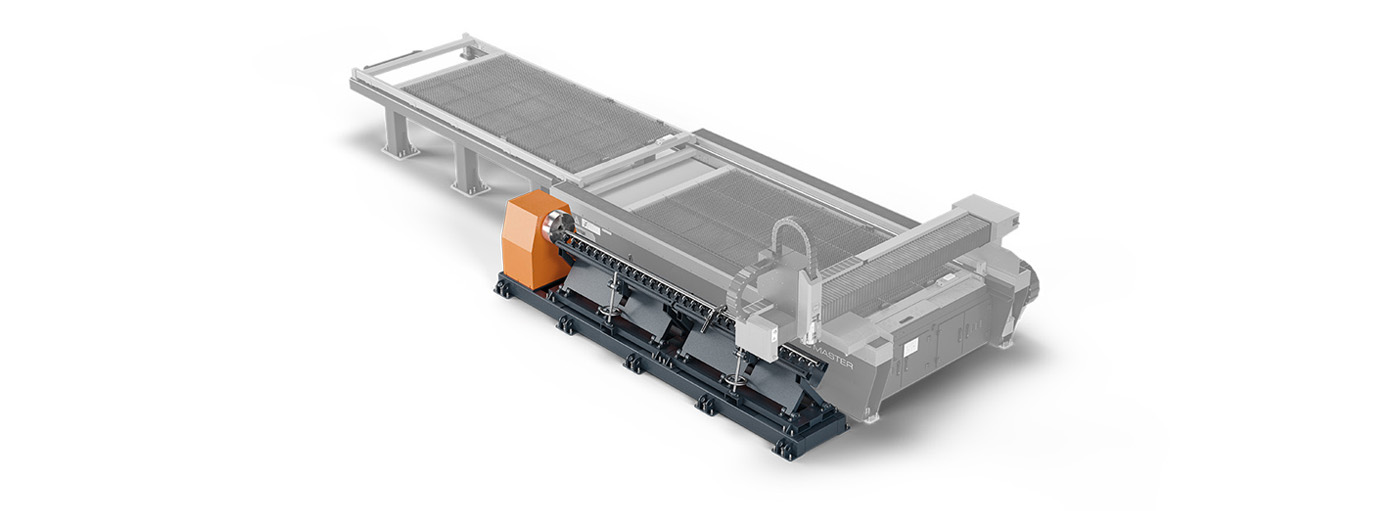

Laser cutting machines Unimach are optionally equipped with modules for round and rectangular tube cutting, combining processing of flat sheets and precision tube cutting. Simple and intuitive change of cutting operations leads to increased efficiency.
Intuitive control
All Unimach equipment is controlled from one workplace using one software. Simple and user-friendly interface allows for carrying out many repeated operations automatically.
The highest cutting quality
Special function of Unimach software measures the tube curve and corrects received data which leads to precision processing of workpieces with damaged geometry.
Specifications:
Max diameter: 320 mm
Max length: 3000 mm
Max thickness of tube wall: 10 mm
Max weight: 150 kg
Rotary axis parameters:
Rotary axis drive: servo drive
Positioning accuracy: ±0,1 mm/m
Repeatable accuracy: ±0,1 mm/m
Max speed: 120 rot/min
