Standard equipment
Rigid all-welded heat-treated machine bed with subsequent machining
Gantry coordinate system
Light-weight composite portal
High precision guides, integrated feedback
Linear drive, axes X, Y
Zoned smoke exhaust system with automatic zone switching
Ytterbium fiber laser IPG Photonics
Cooling system water / air (chiller)
Focus length control system FoCut
Laser optical head with automatic drive of focus lens LH-110
Control console UM-103 (IP65, industrial LCD 21", stationary control panel, pull-out keyboard)
Software UniCut
Automatic 4-gas console (2 gases up to 10 atm, 2 gases up to 20 atm)
Cabinet protection of cutting area with an access to working table
Automatic shuttle table
SPTA kit
Commissioning works and personnel training
Description

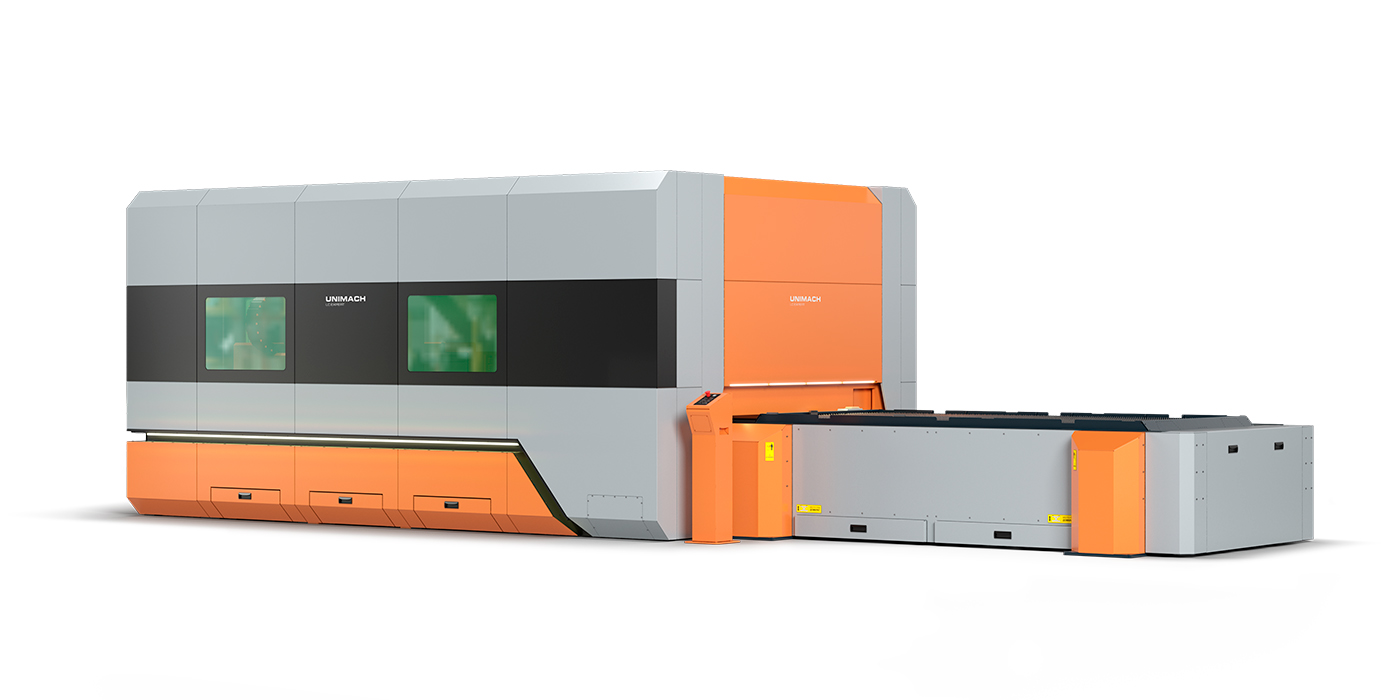

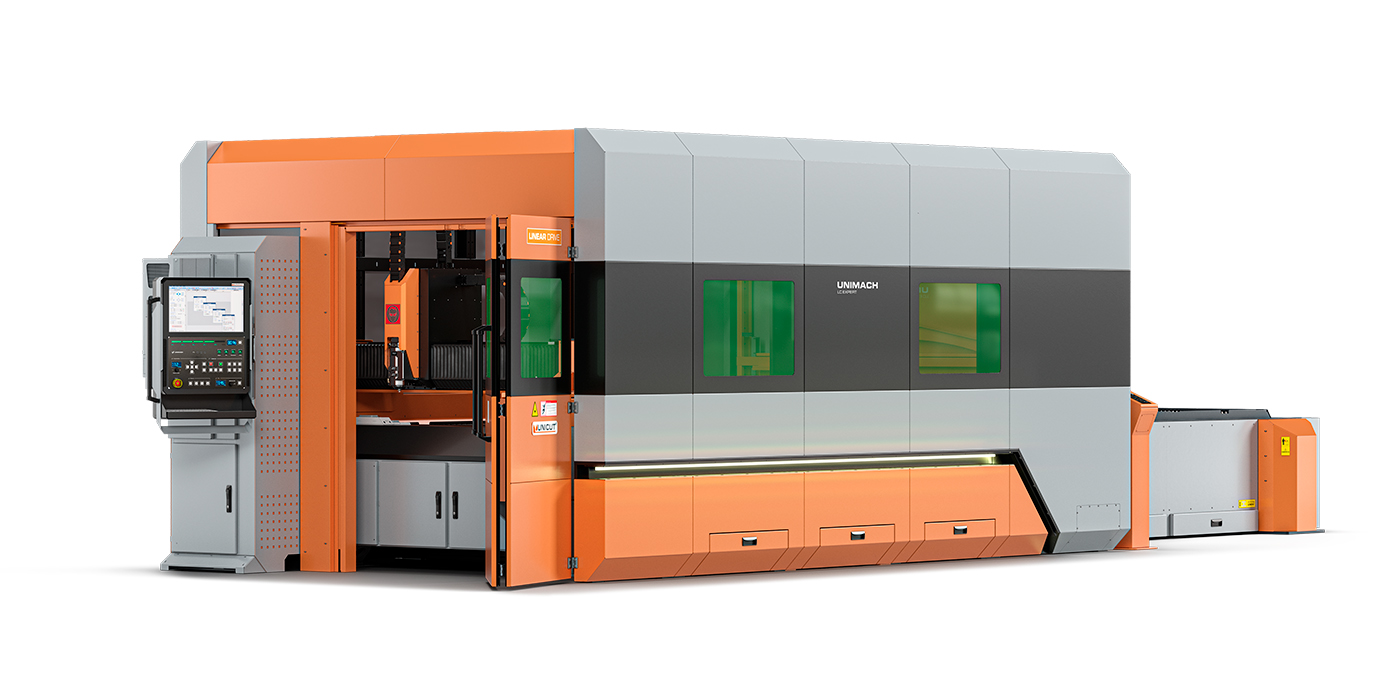

Laser cutting machines Expert series outstand Unimach production line due to the extreme efficiency. This solution will perfectly meet the needs of Medium& Large Enterprise. The wide range of additional automation significantly minimizes downtime of the equipment.
Unimach machinery is manufactured in St Petersburg using our own components.
