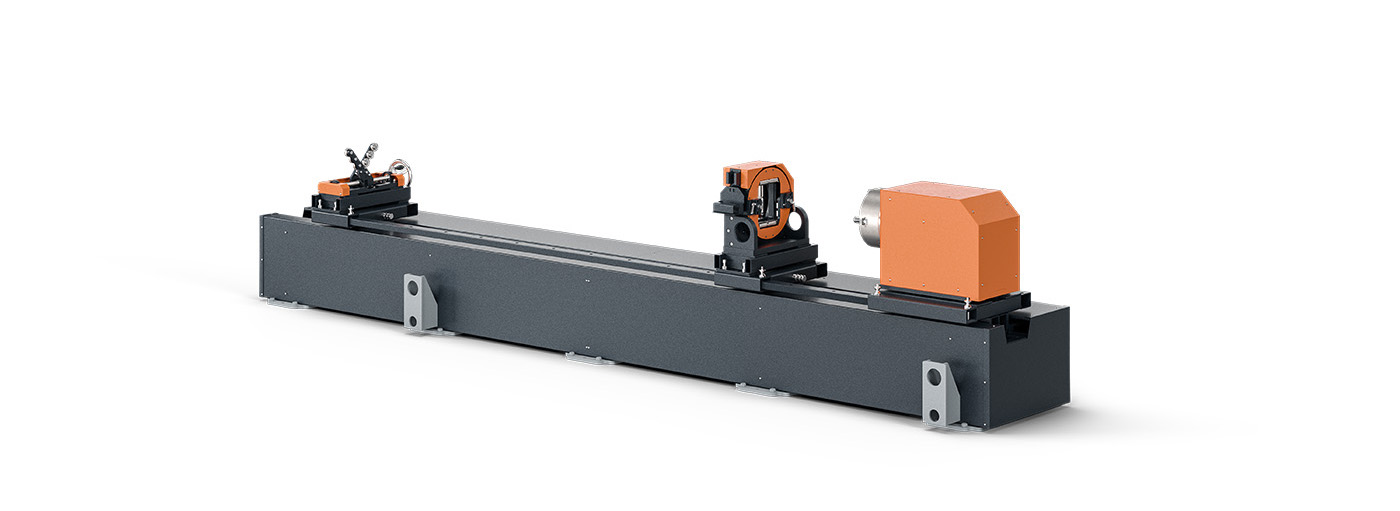

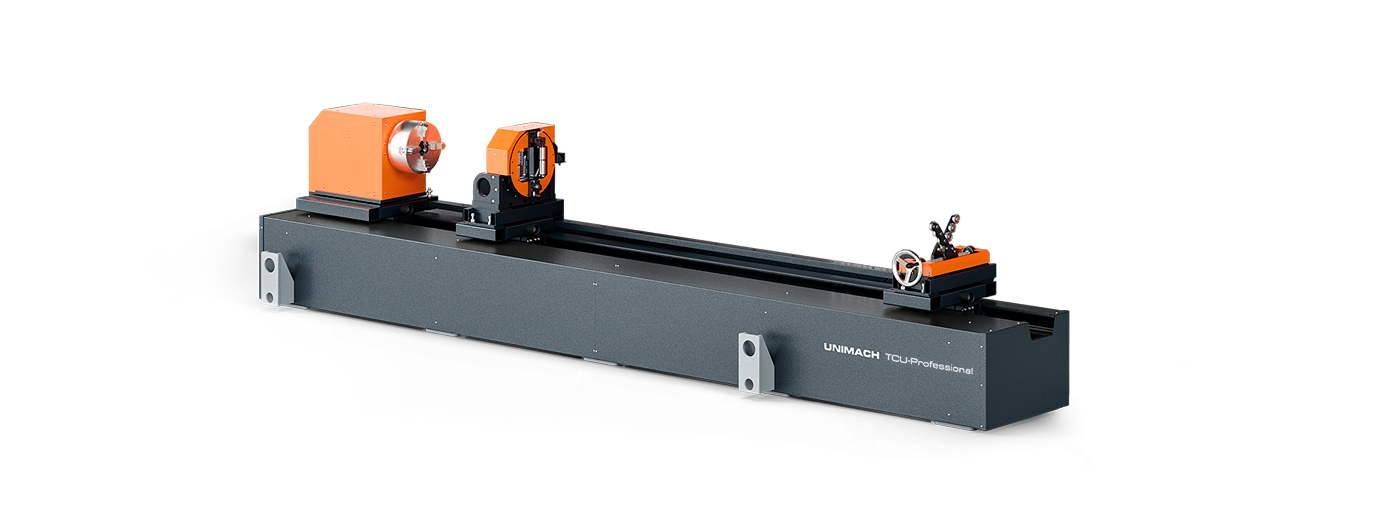

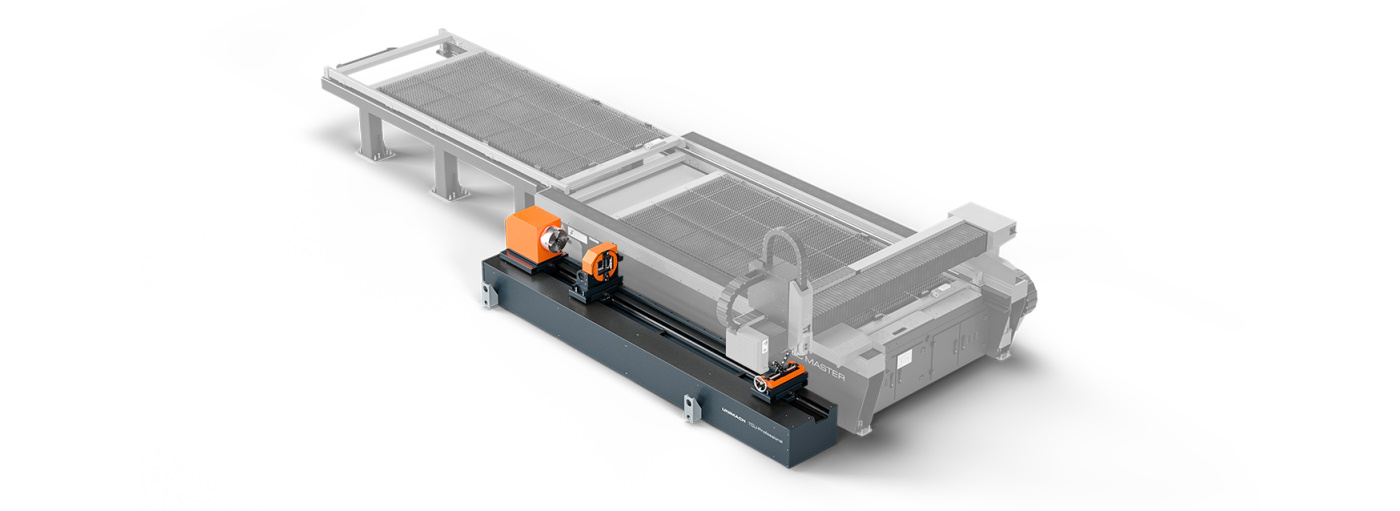

Module for round tube cutting TCU-Professional is combined with laser cutting machines LC Standart, LC Master, LC Professional M2 and allows for cutting tubes along the length, engraving, as well as cutting out holes of any complexity and grooves.

Unimach machinery is manufactured in St Petersburg using our own components.

TCU-Professional Features
Cutting operations can be carried out near the supporting steady rest which lead to high precision cutting of tubes deformed due to manufacturing
Bowed tube is measured before the cutting in order to compensate it

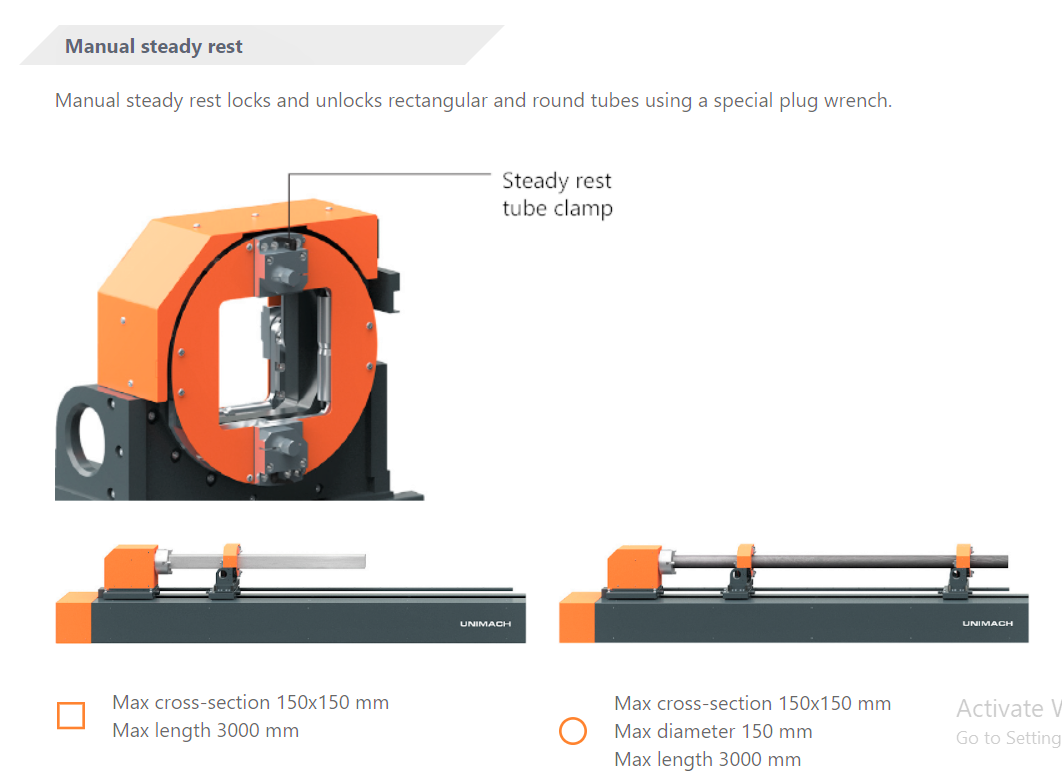

Zero backlash steady rests to support a workpiece
Machine body is optimized by anchor reinforcement
Shaped tube cutting at angle

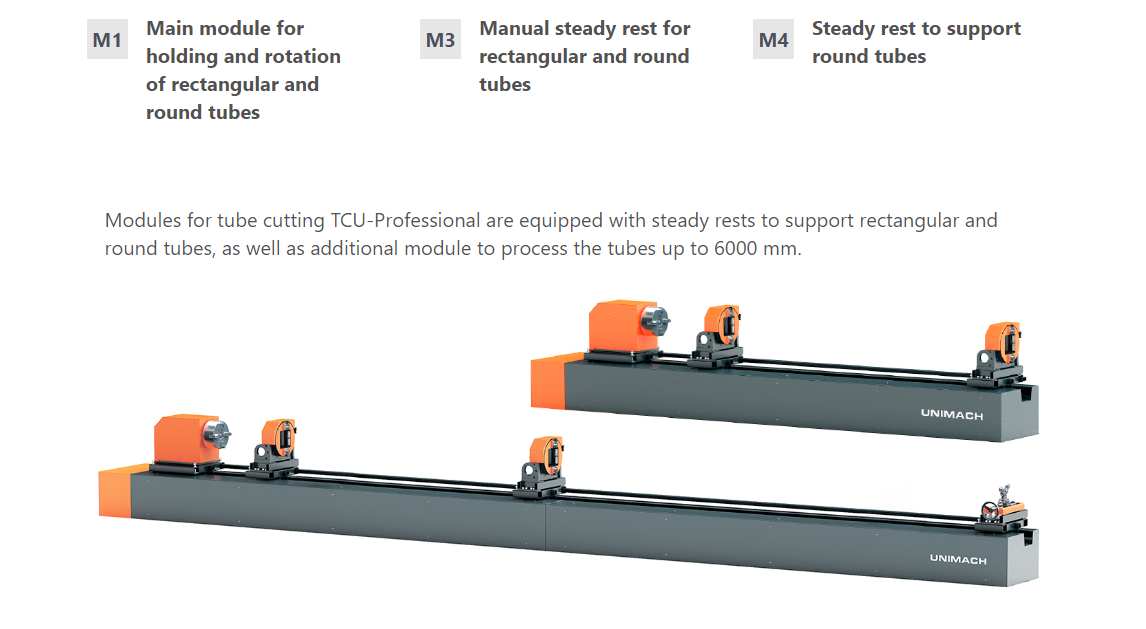

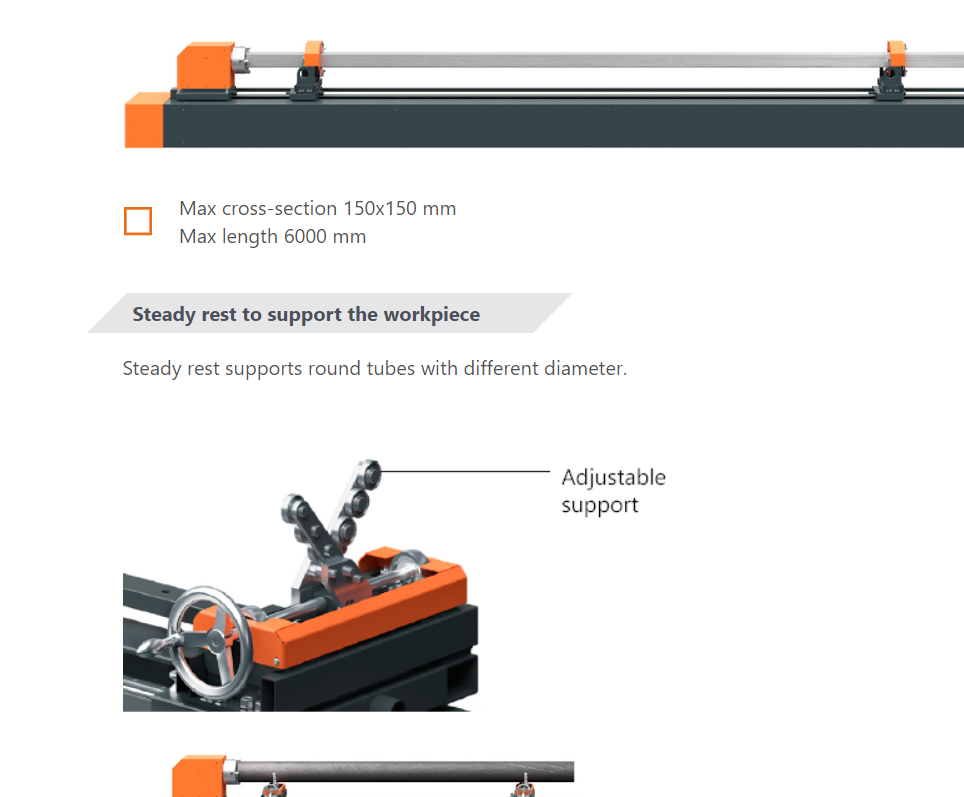

Universal steady rest to support shaped and round tubes
Features of Unimach tube cutting modules
High performance
Laser cutting machines Unimach are optionally equipped with modules for round and rectangular tube cutting, combining processing of flat sheets and precision tube cutting. Simple and intuitive change of cutting operations leads to increased efficiency.

Intuitive control
All Unimach equipment is controlled from one workplace using one software. Simple and user-friendly interface allows for carrying out many repeated operations automatically.

The highest cutting quality
Special function of Unimach software measures the tube curve and corrects received data which leads to precision processing of workpieces with damaged geometry.

Specifications:
Max. size of square tube, mm: 175x175 (diagonal inscribed in Ø250mm)
Max round tube diameter: 250 mm
Max tube length: 3000 mm
Max thickness of tube wall: 10 mm
Max weight: 300 kg
Compliant with cabinet protection
Rotary axis parameters:
Rotary axis drive: servo drive
Positioning accuracy: ±0.1 mm/m
Repeatable accuracy: ±0.1 mm/m
Max speed: 120 rot/min
