Applications of SC15 model thermometer with Wicca micro switch
Suitable for temperature regulation in mechanical engineering applications
Temperature regulation in baking ovens
Temperature regulation in oil and compressor industry
Temperature regulation in the refrigeration industry
Special features of SC15 model thermometer with Wicca micro switch
in sizes of 60, 80 and 100 mm
Suitable for temperature measurement from -100 to +400 degrees Celsius
capillary
Plastic body material
Description

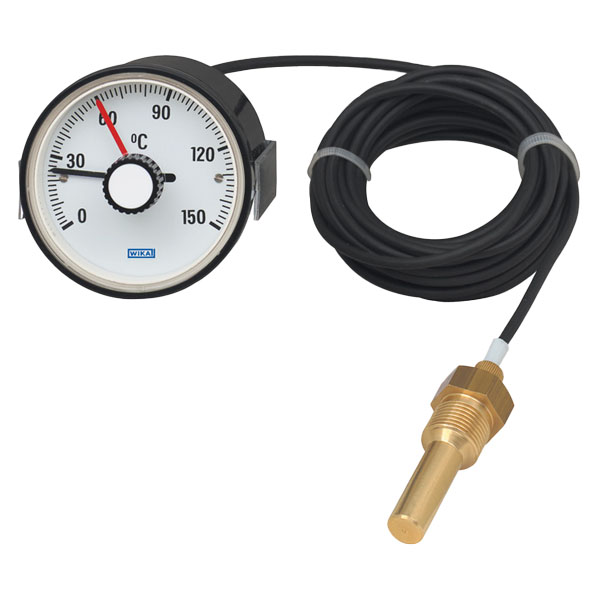

SC15 Vika thermometer with micro switch
The SC15 Vika thermometer is designed with a micro switch suitable for measuring temperature from long distances. SC15 model temperature gauge is the right choice for measuring high temperatures.

By using Vika actuated gas thermometers, temperatures in the range of -200 to 700 degrees Celsius can be measured.

The internal structure of actuated gas thermometers includes:

Pipe
Bourdon tube
Gas with constant amount
will be

A change in temperature causes a change in the pressure of the gas inside the thermometer. Changing the pressure causes the Bourdon tube to move, and finally, changing the position of the Bourdon tube causes the hand to change and the temperature is displayed.
Features of thermometer model SC15 with Wicca micro switch
Page size
This thermometer is designed in three different sizes.

60 mm
80 mm
100 mm
Accuracy class
Accuracy class of SC15 VICA thermometer is 2 in EN 13190.
Measurement range
Using this thermometer, you can measure temperatures from -100 to 400 degrees Celsius.

Measurement technology
This thermometer measures the temperature using the actuated gas method.
Connection methods
Adjustable toggle on switches
Adjustable switch together on switches
A fixed switch and an adjustable switch
Fixed changes on switch
Fixed changes on switches
body material
Plastic
Installation type
Panel installation with clamps
(The thermometer with a steel body can be installed with a flange in the panel.)

capillary
The capillary of this thermometer is made of three types of materials

Plastic material suitable for temperatures of -40...120+ degrees Celsius
Copper material is suitable for temperatures of -40...350+ degrees Celsius
Stainless steel material is suitable for temperatures of 100-400+ degrees Celsius
