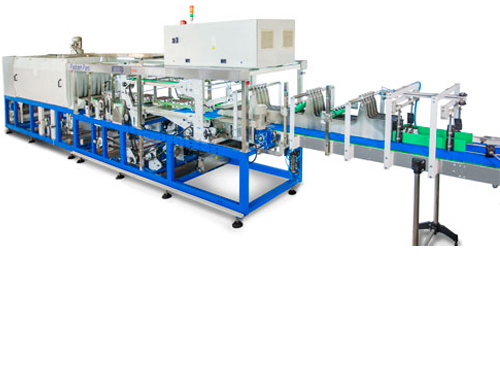

These series of machines are designed for film only wrapping with no sealing bar in single and double lanes types.
Depending on the machine model, the type of packaging and characteristics of the product, the production speed ranges from 30 to 60 packages per minute.
Model 830: Single lane, up to 30 packs/minute
Model 860: Double lanes, up to 60 packs/minute



This machine has the following features:

Fully automatic operation by PLC control.
Colour touch screen panel.
Electronic speed change in main drive motor with frequency inverter.
Error diagnostic system.
Fallen bottle detector system.
Feeding and cutting systems controlled by servo motors.
Equipped with safety clutches.
Equipped with anti-statics bar system before cutting section (Optional).

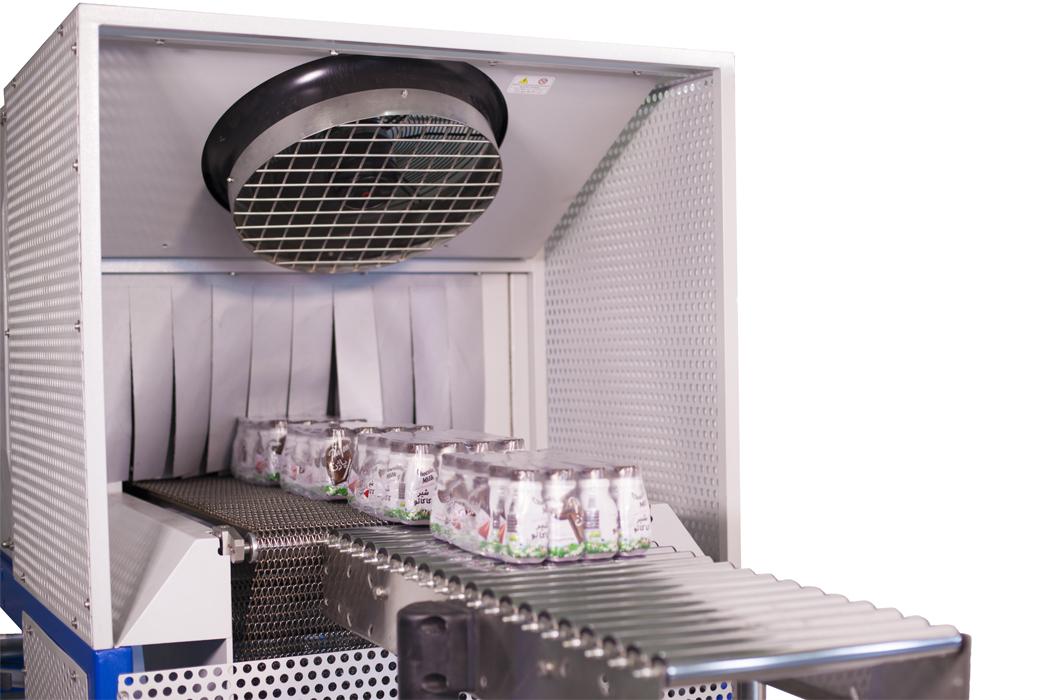

Heating tunnel temperature is preciously controlled by PLC system.
Easy access to all parts of the machine.
Safety guards made of AISI 304 stainless steel with tempered glass.
Ability to cut and wrapping pre-printed shrink film.



The overlap shrink machine is equipped with sorting system at the beginning
The separation system is composed of a metal mesh conveyor or plastic chain and an upper pneumatic press that stabilized the product in the post-separation stage.

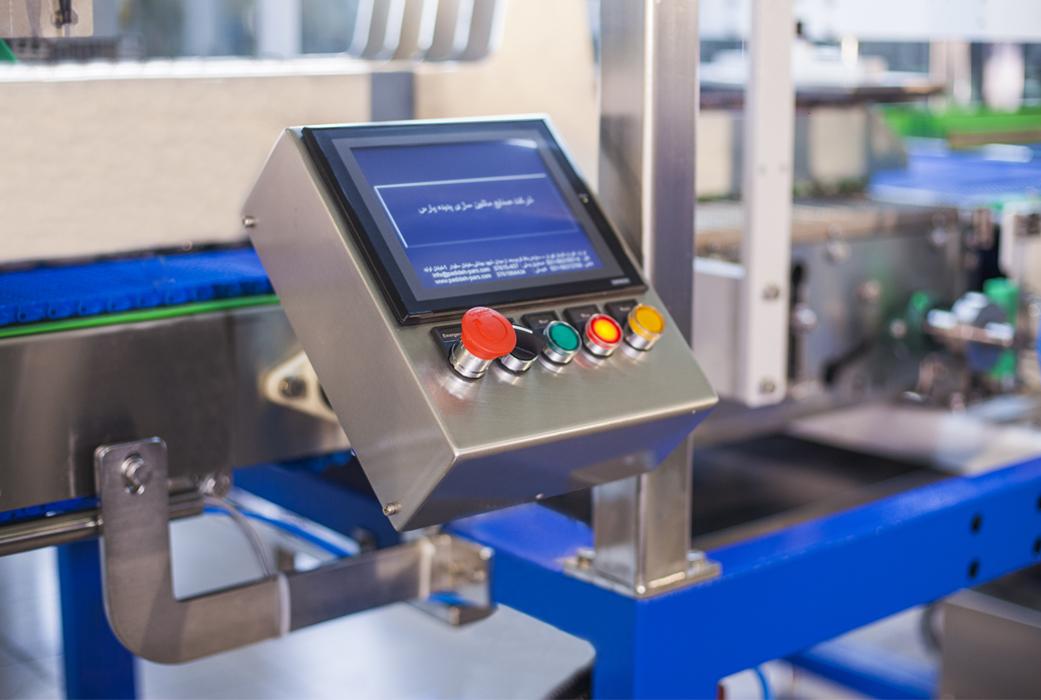

Colour touch screen panel gives operators the possibility of managing all machine parameters and keeping all its functions under control.

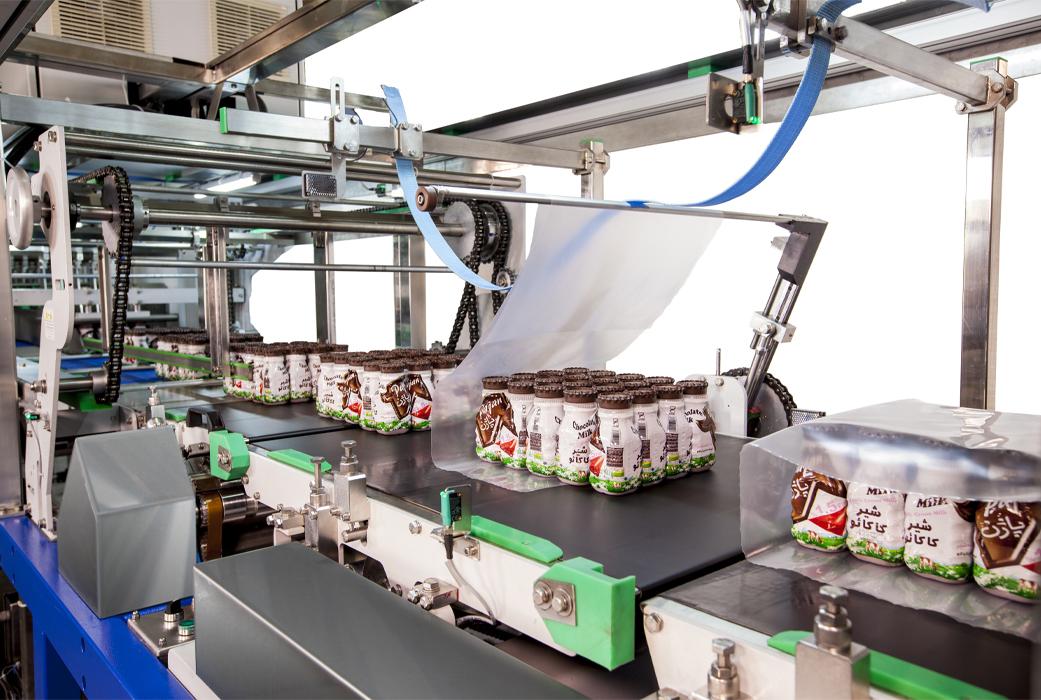

Film transport crossbar system is equipped with easy setting to wrap a wide range of packs without having to replace parts but through simple manual adjustments.

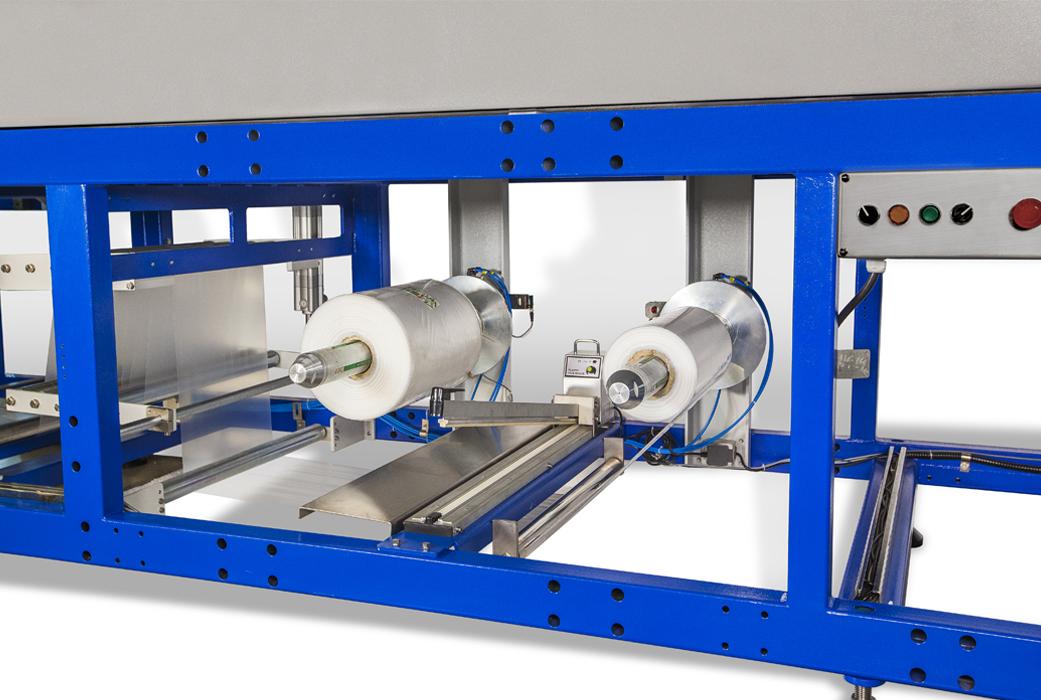

The machine is equipped with double film roll bases and manual thermal sewing bar system.
