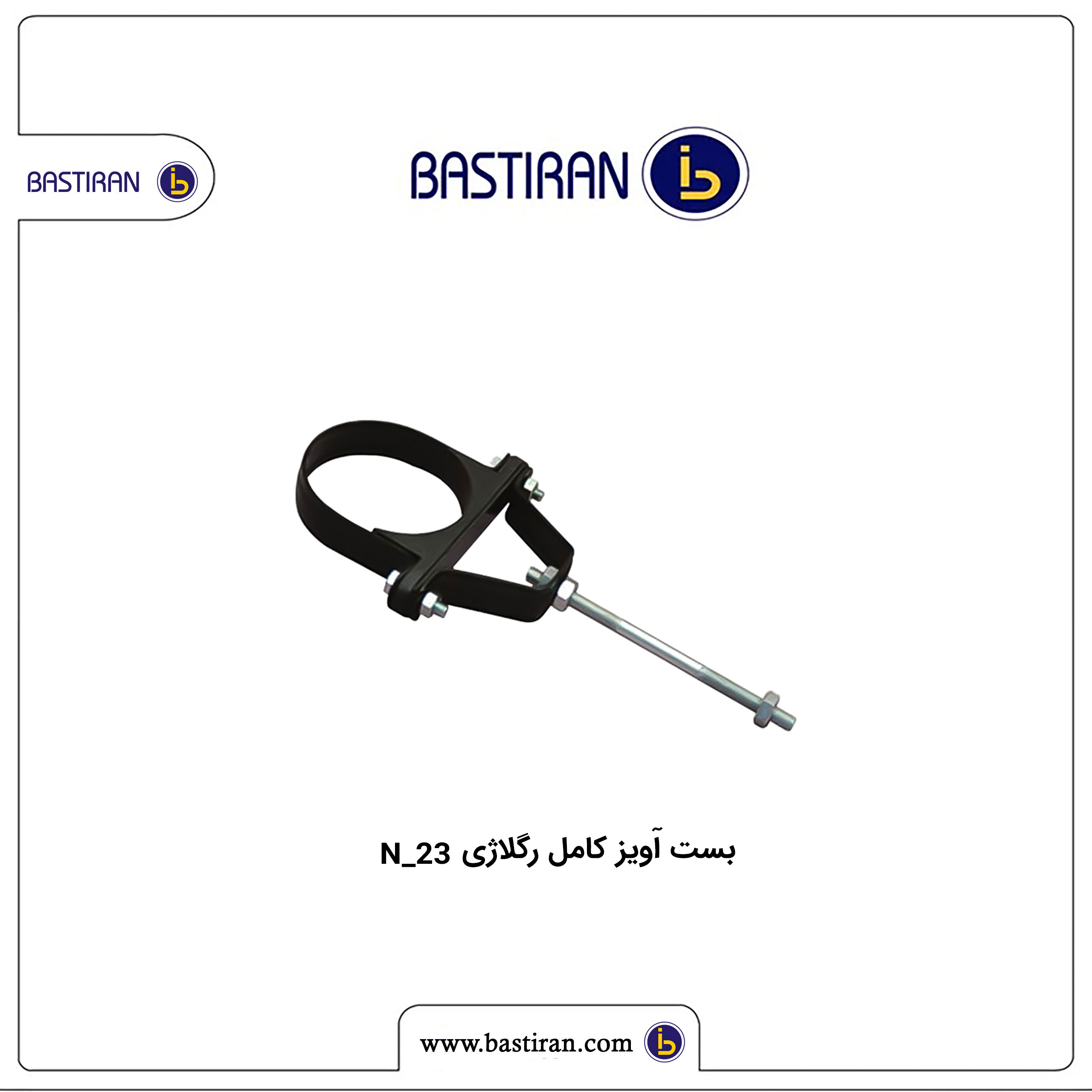

Reglagi's complete hanging clamp (Pipe Clamp, pear clamp) is produced in different sizes and with the ability to withstand different loads and is available to customers and executives. Reglagi complete suspension clamp (Pipe Clamp, pear clamp) is one of the most widely used types of hangers for holding sewer pipes (pushfit), metal, stainless steel, cast iron, polyca, cable, etc. in the construction industry and facilities, which The easiest method is installed and used by operators, pipes under the roofs and horizontal lines.

Pipe clamps can be produced from stainless steel sheets with grades 304, 316, etc., types of iron sheets (CS-ST37), alloys (A516, A283-Gr.C, etc.) and... Along with various coatings, including electrostatic paint (black, caterpillar yellow, gray, etc.), hot and cold galvanized, PVC coating, dichromate coating, etc. Is. This product is coated with PVC and EPDM insulation or without coating, with bolts and nuts on the sides and a polyethylene base, along with a 16 cm long hanging rod.

Pipe Clamp is one of the most widely used, most widely used and cheapest products in the market, which has attracted the attention of customers and employers due to its easy and simple installation method.

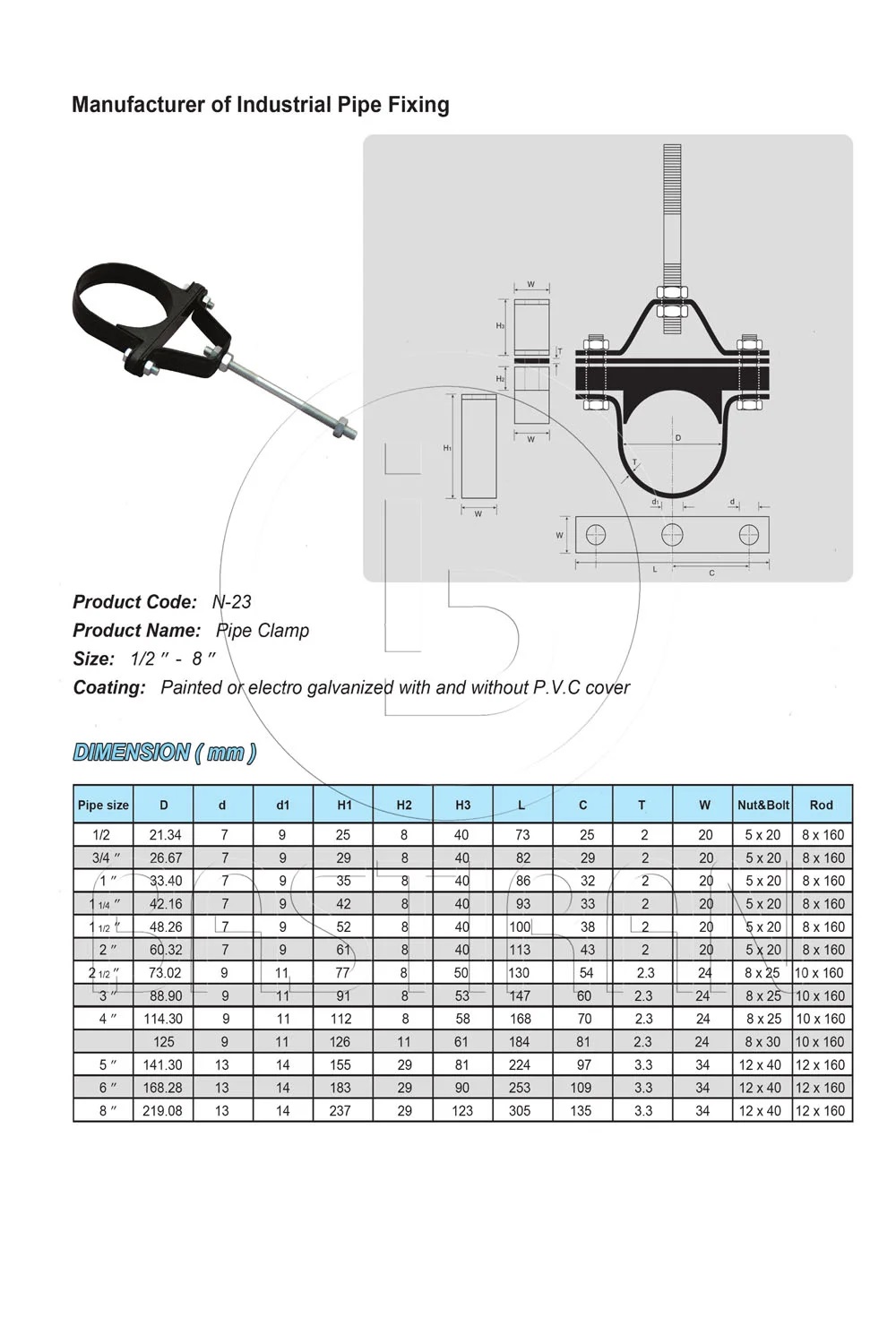

Specifications:

It is suitable for installing pipes with a size of 1/2 to 8 inches (22 to 200 mm) and is produced from a sheet with a thickness of 2 to 3 mm and a width of 20 to 34 mm.
To install the pipes in horizontal lines and under the roofs, it is hanging.
The length of the hanging rod with two threaded ends for hanging is 16 cm.
The dimensions of the hanging rod for size 1/2 to 2 inches (22 to 63 mm) are equal to M 8 x 160.
The dimensions of the hanging rod for size 1/2 2 to 5 inches (74 to 125 mm) are equal to M 10 x 160.
The dimensions of the hanging rod for the size of 5 to 8 inches (135 to 200 mm) are equal to M 12 x 160.
According to the size of the fastener with bolts and nuts, the sizes are M 5 x 20, M 8 x 25 and M 12 x 40.
It has a polyethylene base (temperature tolerance in the range of -30 to +150 degrees Celsius).
Packaging: Carton
Size:

Reglagi complete hanging fastener (pear fastener) is produced from size 1/2 to 8 inches.
