CONSTRUCTION:

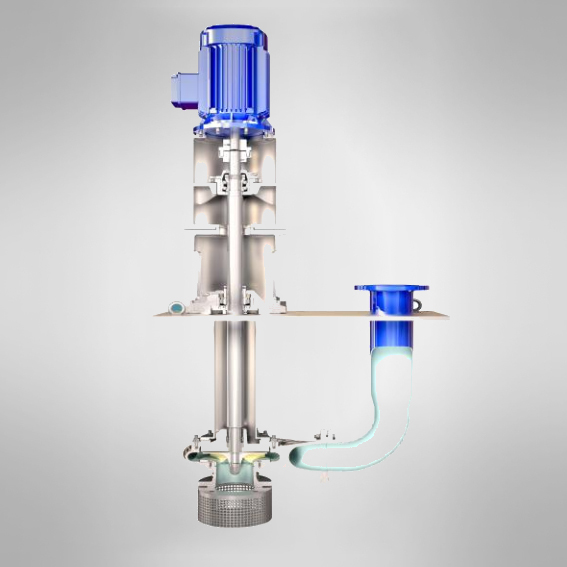

PV5 pump is API 610-VS5 vertically suspended, cantilever sump pump. This centrifugal pump has single volute casing and the discharge pipe separate from the shaft column. The line shaft is supported only by bearings in the top housing of base plate and has not support bearing within the column. This pump is designed for wells, ditches and tanks and used in application with liquids containing solids or abrasive slurries.
APPLICATION:
Drainage systems
Chemical/Petrochemical industries
Desalination plants
Tanks fluid transfer
Steel factories
Sewage treatment plant
mining and mineral processing
PUMP SPECIFICATIONS:
Capacity: 5 to 900 m3/h
Delivery head: up to 95 m
Discharge diameter: up to 200 mm
Operating temperature range: -10 to 100
Maximum length of submerged pipe: 1000 mm
