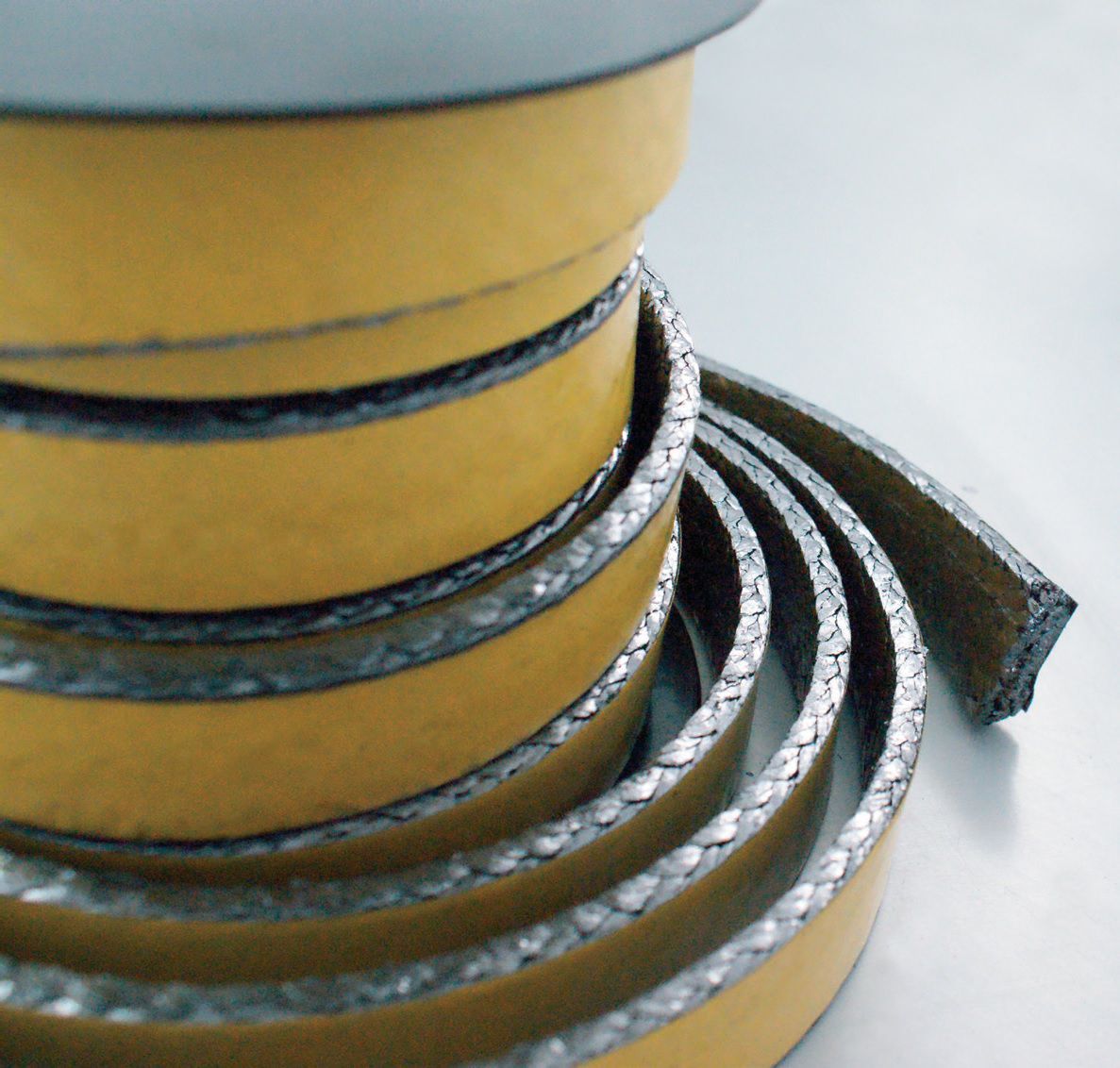

It is a braided graphite tape made from pure graphite fibers. This braided tape can be used as a nearly endless sealing tape to seal all flange forms and styles.
The tape could be used in flat-face or raised face flange connections at pressure up to 25 bar. For high pressure applications the tape should be installed in a retaining groove. The packing can be stored in its original packaging for a minimum of 3 years in dry, cool, conditions. The maximum stated operating temperature and pressure cannot be used simultaneously.

APPLICATION:
To be used as an endless gasket-strip for vessels and flanges of extreme uneven, high temperature and high pressure. Used in Heat-Exchangers, boilers, pipes, doors, covers, etc. Easy handling and installation to every size, also used as a universal-gasket during revisions, etc. Since there is no scrap or waste, it costs less than other gasket materials. By using only a few sizes, large inventories of gasket sheet and costly precut gaskets can be eliminated. Installation time is kept to a minimum since there are no templates, precutting or special fitting requirements.
:
• Temperature: -240 ~ +550°C
• PH: 0-14
• Max. pressure: 100 bar (without wire reinforcement)
200 bar (with wire reinforcement)

PARAMETER:
• Temperature: -240 ~ +550°C
• PH: 0-14
• Max. pressure: 100 bar (without wire reinforcement)
200 bar (with wire reinforcement)
