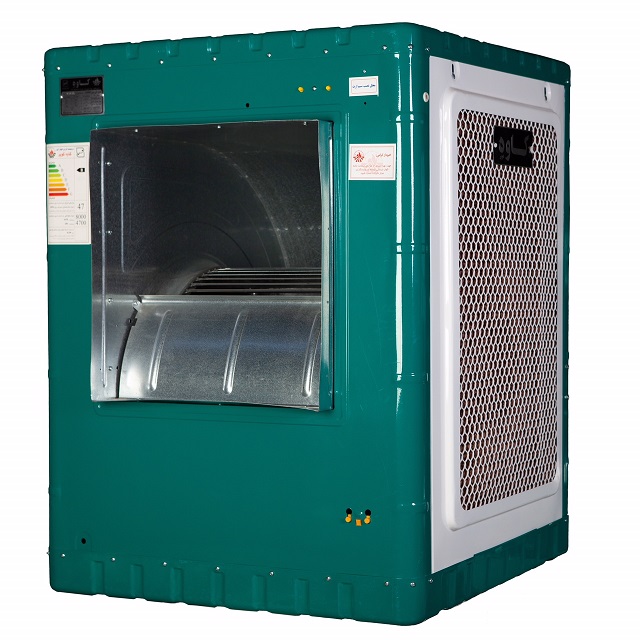

Technical specifications of KA80P evaporative Air conditioner:        D class

Technical specifications:

Blower wheel has a one piece construction and is dynamically balanced therefore,has a very low noise factor.

The bearings are specially designed for this purpose and have very tight tolerance with a long life.

Filter pads:

The filter pads have uniform thickness for best air throughout and evaporation of water.

Body:

The body and other different parts of air cooler are made of galvanized steel sheet, which gives very long life against corrosion.(the coating mass is 220 gsm , gr/m2 in both side)

Length:87cm

Width:87cm

Height:115cm

Net weight:78kg

Curing temperature of paint:200 C0

Electricity voltage: 220 V

Capacity of air flow:8000 m3/hr ,4700 cfm

Power of electromotor: 3/4 HP

The perfect solution for hot and dry summer
